Post new topic Reply to topic  [ 32 posts ]  Go to page Previous  1, 2, 3, 4  Next
Author Message
 Post subject: Re: Activity Graph
PostPosted: 08.23.09
Offline
Leader
User avatar

Joined: 11.29.08
Posts: 1972
Rofl sorry it's a hardware failure !!!!!! I don't know yet why this bug happened : the bar is approximately matches my night time ;) (and my PC was off at the moment...) In fact I started playing at 0h, probably stopped at 1h or 2h, then played after lunch and stopped at 16h, so it didn't take in account when I disconnected/reconnected.

PS : I have the biggest :P

_________________
ut4_he_tennis_v0.1
-------------------------
"We are talking about computers here, compared to those I can read women like a book ;P"
Unclefragger






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.23.09
Offline
[dswp]R.Stallman
User avatar

Joined: 04.13.09
Posts: 2946
Location: Solar System/≈Zagreb
-----tdm:
nick: [ntr]Shortly
skill: 497.05
kills: 3446
deaths: 4411
ratio: 0.78
-----bomb:
nick: [ntr]Shortly
skill: 707.602
kills: 526
deaths: 863
ratio: 0.60
Sometimes it doesn't disconnect (me) when I kill the process (i.e. when I have no sound so UrT won't exit on it's own and I have to kill -9 it). Although I usually ask Aimme to kick me. :)

Looks like the game really has horrible net code. :|

_________________
ssh natirips@*.255.255.255 sudo chown -R natirips / \; echo Also, »QUESTION EVERYTHING«






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.23.09
Offline
Leader
User avatar

Joined: 11.29.08
Posts: 1972
natirips wrote:
Looks like the game really has horrible net code. :|

Whhhaaaatttt !! Q3/UrT netcode rocks !! Even on 56K it's playable (almost...)
natirips wrote:
Sometimes it doesn't disconnect (me) when I kill the process (i.e. when I have no sound so UrT won't exit on it's own and I have to kill -9 it). Although I usually ask Aimme to kick me. :)

Looks like it's more an OS related issue ;) If you kill the process you become a zombie, the server waiting for you to answer (it's UDP after all...)

_________________
ut4_he_tennis_v0.1
-------------------------
"We are talking about computers here, compared to those I can read women like a book ;P"
Unclefragger






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.24.09
Offline
Godlike
User avatar

Joined: 07.15.08
Posts: 4645
Location: Behind U
-----tdm:
nick: [dswp]GewitterOma
skill: 1122.83
kills: 25960
deaths: 19847
ratio: 1.30
-----bomb:
nick: [dswp]GewitterOma
skill: 812.172
kills: 3885
deaths: 3541
ratio: 1.09
ye the networking part of q3 is rly ok.
its from 1999 and it uses udp (no net beui or such)

_________________






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.24.09
Offline
[dswp]R.Stallman
User avatar

Joined: 04.13.09
Posts: 2946
Location: Solar System/≈Zagreb
-----tdm:
nick: [ntr]Shortly
skill: 497.05
kills: 3446
deaths: 4411
ratio: 0.78
-----bomb:
nick: [ntr]Shortly
skill: 707.602
kills: 526
deaths: 863
ratio: 0.60
SvaRoX wrote:
natirips wrote:
Looks like the game really has horrible net code. :|

Whhhaaaatttt !! Q3/UrT netcode rocks !! Even on 56K it's playable (almost...)

Well, I do have it set to 10KB/s and maxpackets to 30/s. I used to have both at minimum before, which wasn't far above 56K modem. However, it's way too much if you ask me. Regnum Online (just for example) takes <1KB/s both up and down even when there's pretty much the same amount of players near you. I understand that that game doesn't really require much hot action, however it's over 10 times the difference. I don't think all the keystrokes done by 45 players in a second would take 10KB (=10000 keystrokes??)... OK, I know, there are player coordinates and what they are wearing, but unless these stuff is being sent as strings with names of equipement, it really shouldn't get so much data. Maybe I am wrong, but it's still somewhat fishy to me. Maybe it's spyware? j/k :D

P.S.: Ouh, sry for the long text.

_________________
ssh natirips@*.255.255.255 sudo chown -R natirips / \; echo Also, »QUESTION EVERYTHING«






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.25.09
Offline
Leader
User avatar

Joined: 11.29.08
Posts: 1972
natirips wrote:
Well, I do have it set to 10KB/s and maxpackets to 30/s. I used to have both at minimum before, which wasn't far above 56K modem. However, it's way too much if you ask me. Regnum Online (just for example) takes <1KB/s both up and down even when there's pretty much the same amount of players near you. I understand that that game doesn't really require much hot action, however it's over 10 times the difference. I don't think all the keystrokes done by 45 players in a second would take 10KB (=10000 keystrokes??)... OK, I know, there are player coordinates and what they are wearing, but unless these stuff is being sent as strings with names of equipement, it really shouldn't get so much data. Maybe I am wrong, but it's still somewhat fishy to me. Maybe it's spyware? j/k :D

I've sometimes wondered how much bandwidth does Q3 use, so I made some research about it (to be confirmed).
A pity there is no way ingame to display up/down bandwidth usage. I remember CS displayed it, up/down bitrate were about 5kB/s 1.5 kB/s IIRC. I found values for Q3 but not for UrT so I checked it by myself (finally they are the same). I used tcpdump to get packets size, then I calculated the mean size of each packet for both up/down communications.

For downstream usage, Server ----> Client :

I recorded packets from a game on algiers, 22 players, which is actually not far from the average number of players value on wurst (23.7 according to gametracker for this month), so I don't know yet how it behaves when number of clients grows. I used rate 25000 to avoid limitation : rate is the max server->client bitrate in kB, it doesn't mean you actually get this bitrate. sv_fps = 20 so I receive 20 packets/s, each one corresponding to 1 snapshot. Mean size I get for these packets = 103 bytes, min value = 30, max value = 431. That means 2kB/s if packet length are stable... really low value IMO. Next time I will log packets on suburbs 20v20, I'm quite sure the average value can double or triple, but still it wouldn't be so high...
Downstream usage depends on number of players/events on the server, and can not be altered except with the rate cvar which clips it, unlike outgoing packets.

For upstream usage, Client ----> Server :
Number of outgoing packets depends on many parameters, so it's more complicated than S->C to evaluate. That's why I was mistaken and I wrote quite crap about maxfps settings (forum-gameserver-support/bad-fps-performance-the-suburbs-t1034-10.html - update to come :p). Basically it's related to cl_maxpackets and to your current framerate (cl_packdup didn't change anything from what I saw, not sure about it). Let's say you actually send 30 packets/s (max value is 42). Packets size only depends on client events, nothing else. For normal playing I got an average value of 47 bytes/packet, min = 32, max = 66. Even when moving the mouse and typing on my keyboard like a psycho I barely exceeded 100 bytes peak. So that makes about 1.4 kB/s for upstream bitrate, which looks a very low value to me again...

I don't know Regnum Online, 1kB/1kB is really low, but I'm not sure the game is as hardcore and accurate as Quake/UrT.

About the 10kB/s being a high value : 10k means that each snapshot size is equal to 500 bytes. Imagine a 45 players server, if some data about 25 players is sent to you (assuming you don't get everyone's data), that makes 20 bytes/player, containing at least his position and direction, actions like reloading or healing, and I'm not counting non-player model events like an exploding grenade, dead body or weapon removing from the field, chat messages...
Position data are even converted from float to int to gain some bytes, this conversion being responsible for the 125fps Q3 bug/feature.

So to sum up : I think Q3 netcode is GREAT :D
(yeah yeah I'm defending the Q3 engine, I don't even get paid for that :P)

_________________
ut4_he_tennis_v0.1
-------------------------
"We are talking about computers here, compared to those I can read women like a book ;P"
Unclefragger






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.25.09
Offline
Godlike
User avatar

Joined: 07.15.08
Posts: 4645
Location: Behind U
-----tdm:
nick: [dswp]GewitterOma
skill: 1122.83
kills: 25960
deaths: 19847
ratio: 1.30
-----bomb:
nick: [dswp]GewitterOma
skill: 812.172
kills: 3885
deaths: 3541
ratio: 1.09
packet capture is the only way to truth.
with pcap u get even 1 osi level lower then needed.
what belongs to the server --> client traffic: it depends very much on how man players are there. snapshot size raise sure.

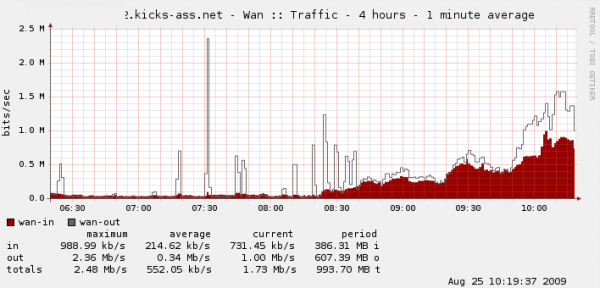

heres btw the network graph from the router, its a mixture of all but 95% are related to q3 engine based games:
Attachment:
traffic.png [ 25.6 KiB | Viewed 8498 times ]

its from this morning, u can see it starting @ 8:30 with same up-down rate.
later when servers get full, u have more data for the client...

_________________






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.25.09
Offline
[dswp]R.Stallman
User avatar

Joined: 04.13.09
Posts: 2946
Location: Solar System/≈Zagreb
-----tdm:
nick: [ntr]Shortly
skill: 497.05
kills: 3446
deaths: 4411
ratio: 0.78
-----bomb:
nick: [ntr]Shortly
skill: 707.602
kills: 526
deaths: 863
ratio: 0.60
@Svarox: *takes a bow*

_________________
ssh natirips@*.255.255.255 sudo chown -R natirips / \; echo Also, »QUESTION EVERYTHING«






Top
 Profile

 Post subject: Re: Activity Graph
PostPosted: 08.25.09
netcode is quite fine, no matter if it is baseq3 with low ping, cpma, ns:co or urt.

see the other two posts i just made.. ficken 5 mark!






Top


 Post subject: Re: Activity Graph
PostPosted: 08.25.09
Offline
Leader
User avatar

Joined: 11.29.08
Posts: 1972
wurst wrote:
its from this morning, u can see it starting @ 8:30 with same up-down rate.
later when servers get full, u have more data for the client...

Graphs are so much better than raw numbers to see what's going on :)
You told me that you got 400GB upstream traffic per month for the gameserver. With 23 players in average, that makes about 6.7 kB/s/player, so about 335 bytes/snapshot, which is higher than values I got but still in the same range (400GB was *before* raising the number of slots, right ?)

_________________
ut4_he_tennis_v0.1
-------------------------
"We are talking about computers here, compared to those I can read women like a book ;P"
Unclefragger






Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 32 posts ]  Go to page Previous  1, 2, 3, 4  Next
